Hi-C contact matrix — seq

Builds a seq_plot() rendering a Hi-C contact matrix in one of four styles:

"full": Symmetric square heatmap with genomic position on both x- and y-axes.
"diagonal": Same coordinate system as "full" (kept as a separate keyword so call sites can switch styles without changing shape).
"triangle": Rotated 45 degrees; upper triangle only, y-axis is interaction distance in base pairs.
"rectangle": Same rotation as "triangle", but y-axis is capped at max_dist, yielding a rectangle.

Usage

seq_hic(
  data,
  windows,
  style = "triangle",
  max_dist = NULL,
  palette = "blues",
  na_color = "#FFFFD9",
  y_windows = NULL,
  combine_windows = FALSE,
  combine_y_windows = FALSE,
  flip_x = FALSE,
  flip_y = FALSE,
  track_height = 1,
  track_id = NULL,
  legend = NULL,
  show_legend = TRUE,
  ...
)

Arguments

data: Sparse GRanges (mcols: i_start, i_end, j_start, j_end, score) or a numeric matrix / data.frame whose row/column names encode bin positions. Each row must describe a well-formed contact where i_end - i_start and j_end - j_start both equal the Hi-C bin width (they define the tile's footprint on the position and distance axes). For cross-chromosomal contacts, include an optional j_chrom mcols column giving the j-bin's chromosome (the GRanges's seqnames is taken to be the i-bin's chromosome). When absent, both bins are assumed to live on the same chromosome.
windows: GRanges defining the genomic region(s) to display on the x-axis. Multiple ranges produce side-by-side panels (one per range), useful for comparing several regions.
style: One of "full", "diagonal", "triangle", "rectangle". Default "triangle".
max_dist: For style = "rectangle" only: cap the distance axis at this value (bp). Required for "rectangle".
palette: Colour scale palette for the tile fill. Passed to seq_scale_color_continuous().
na_color: Colour for zero/NA contacts.
y_windows: Optional GRanges for the genomic y-axis range in "full" / "diagonal" styles. Defaults to windows (square matrix). Pass a different GRanges to display an asymmetric region pair. Ignored for rotated styles.
combine_windows: Logical; when TRUE, multi-region windows are concatenated into a single virtual track so cross-window data (e.g. inter-chromosomal contacts) renders continuously in one panel. Default FALSE.
combine_y_windows: Symmetric to combine_windows for multi-region y_windows in the full / diagonal styles.
flip_x, flip_y: Logical. Mirror the x or y axis. For the triangle style flip_y = TRUE produces a downward-pointing triangle; for diagonal it switches to the lower diagonal; for full it flips the matrix vertically (y) or horizontally (x). Tick labels follow the same orientation. Default FALSE.
track_height: Relative track height.
track_id: track_id for the generated track. Defaults to paste0("hic_", style).
legend: A LegendKey or SeqLegendSpec forwarded to the tile element. NULL (default) produces no legend entry.
show_legend: Logical. When FALSE, the tile element contributes no legend. Default TRUE.
...: Additional arguments forwarded to seq_track().

Value

A SeqPlot with a single Hi-C track.

Details

To show multiple styles side-by-side, call seq_hic() multiple times and combine via seq_resolve() or %|%.

Examples

library(GenomicRanges)
set.seed(1)
n  <- 80
st <- sort(sample(seq(1, 1e6, by = 1e4), n))
gr <- GRanges("chr1", IRanges(st, width = 1e4),
              i_start = st, i_end = st + 1e4,
              j_start = st + sample(0:5e5, n, replace = TRUE),
              j_end   = st + sample(0:5e5, n, replace = TRUE) + 1e4,
              score   = rexp(n, rate = 0.5))
win <- GRanges("chr1", IRanges(1, 1e6))

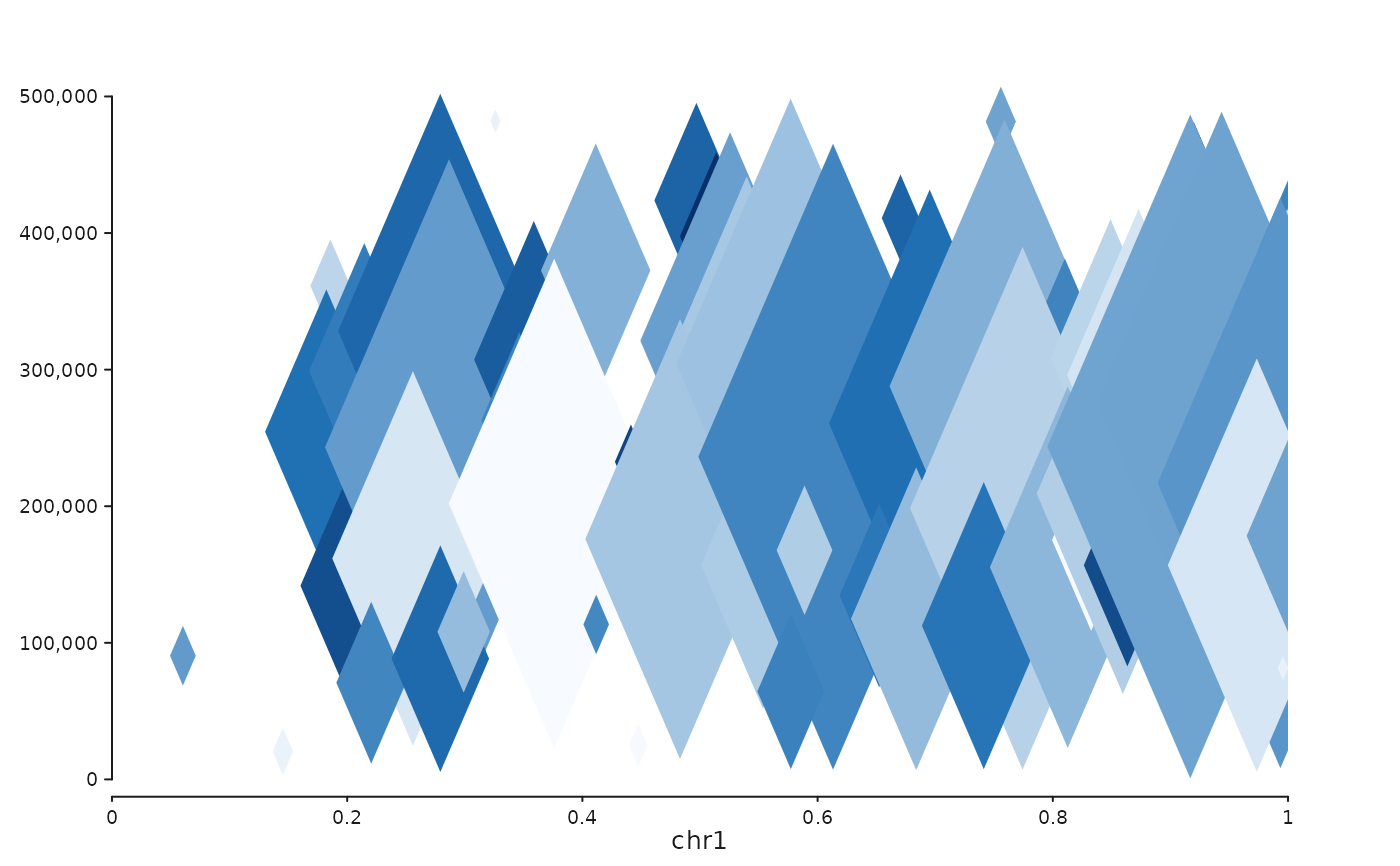

seq_hic(gr, windows = win, style = "triangle")
